1.Description: Datex Ohmeda Compatible 3 Lead Clip Direct-Connect ECG Cable CB-72395R-P
2.OEM Part No
| Manufacturer | OEM Part # |
| AMC | CB-72395R-P |
3.Compatibility:
| Manufacturer | Model |
| Datex Ohmeda | AS/3, AS/3 Compact, Aespire, CS/3, Cardiocap I, Cardiocap II, Cardiocap/5, Light Monitor, M-ESTP, M-ESTPR, M-NESTPR, M-NESTR, S/5, S/5 Compact, Satlite Plus S5 |
4.Specification
| Connector | 10Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
Technical Specifications:
| Category | ECG |
| Instrument connector | 10pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude
Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 10Pin;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!
6.Image
|
|

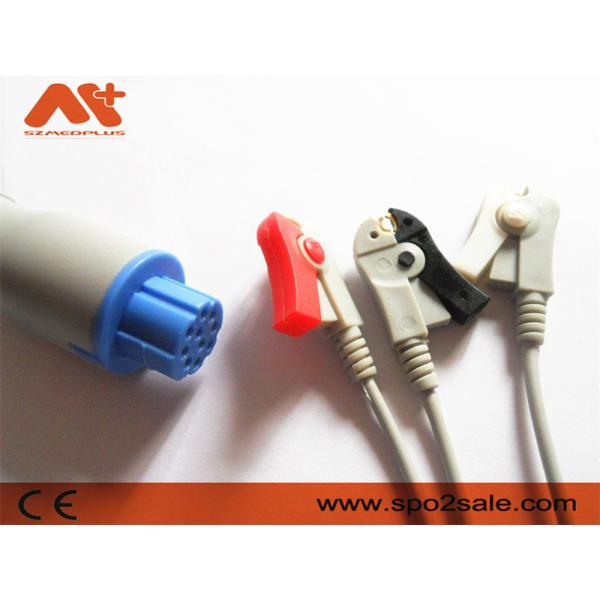

Datex Ohmeda Compatible 3 Lead Clip Direct-Connect ECG Cable CB-72395R-P Images
|
